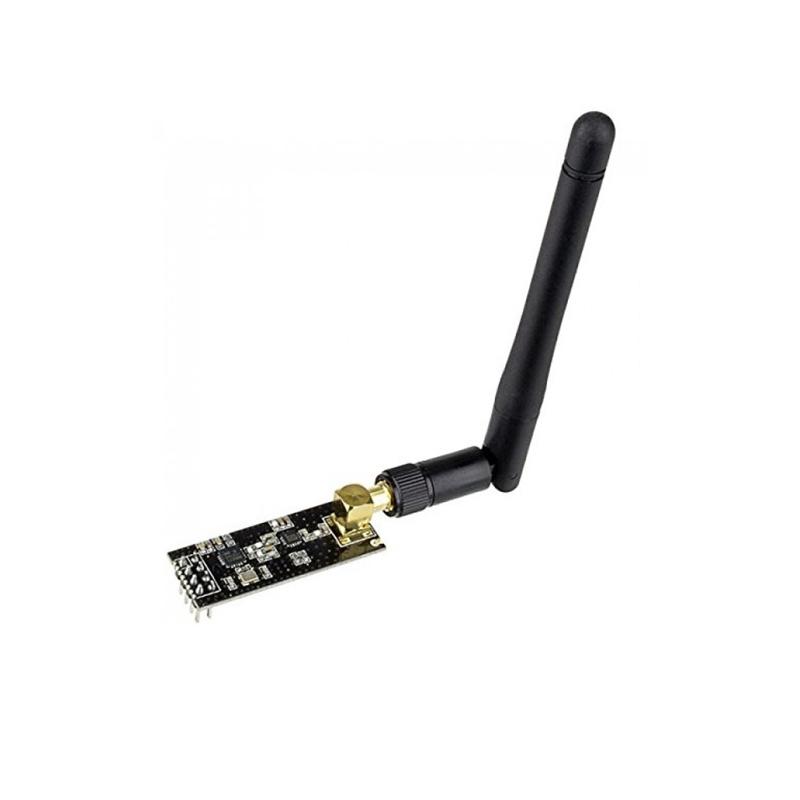

nRF24L01+PA+LNA. This transceiver IC operates in the 2.4 GHz band and has many new features. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-re-transmit feature.
Features:
It uses 2.4GHz global open ISM band, with license free.
SPI interface facilitates the communication with MCU I/O port.
Specifications:
Voltage:3-3.6V
Max output power: +20 dBm
Working current in transmit mode (peak): 115 mA
Working current in receiver mode (peak): 45 mA
Current in-mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92 dBm in 2 Mbps mode, -95 dBm in 1 Mbps mode, -104 dBm in 250 kbps mode
PA gain: 20 dB
LAN gain: 10dB
LAN noise figure: 2.6dB
Antenna gain (peak): 2 dBI
Range: 520m (2 Mbps), 750m (1 Mbps), 1100m (250 kbps) in open areas
Receive Mode Current(peak): 45mA
Dimension of NRF24L01 Module: 31 x 20 mm
Antenna Length: 88 mm
