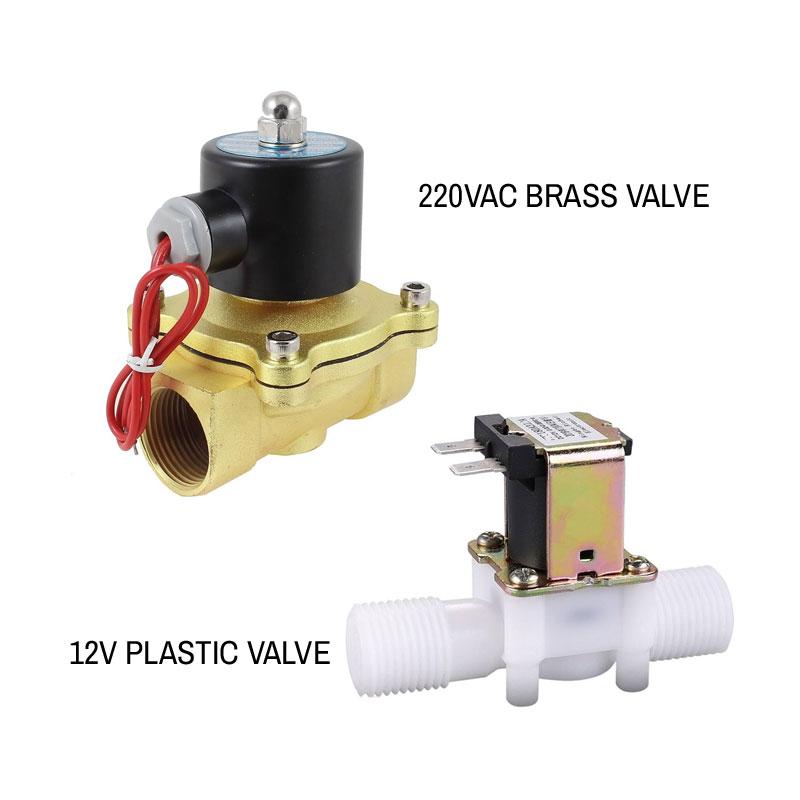

12VDC/220VAC 1/2" Electric Solenoid Valve Magnetic Water Air Flow Normally Closed

Plastic Electric Solenoid Valve Magnetic DC 12V N/C Water Air Inlet Flow Switch 1/2; 50/60mhz 0.02-0.8MPA Voltage:DC12V Interface: Four exceptionally thread Rated power:5W Pressure: This is the micro-pressure valve (with pressure), issuitable for 0.02-0.8MPA pressure Fluid: (0-100 ° C) water Work: flat-rate system Water flow characteristics (with pressure-type): 0.02Mpa> 1.5L / min; 0.10Mpa> 7L / min; 0.30Mpa> 12L / min; 0.80Mpa> 20L / min Insulation: insulation resistance between conductors and non-conductor is greater than 100MΩ Insulation class: E class insulation Life: ≥50 thousand times (laboratory data) ≥30 million times (actually normal use) 220V AC Brass Solenoid Valve Pipe diameter: 1/2 Fluid temperature: -5～80℃ Working pressure: 0-10kg/cm2 Voltage: AC 220 volts Name: Electric solenoid valve Model: 2W Material: Brass Color: black + gold Voltage: AC 220 volts Type: normally closed Action action: direct action Connection method: internal thread Nominal diameter: 16mm Fluid temperature: -5～80℃ Working pressure: 0-10kg/cm Protection level: IP65 Thread type: NPT Oil seal material: NBR Oil port: 1/2"NPT import and export Working medium: air, water, oil feature: -Double position, one-way, normally closed switch, solenoid water valve. -High-quality brass gravity casting, hard and durable, non-corrosive, and the product has water inlet and outlet directions. -It can be installed at any angle, but keeping the horizontal pipe upward is a good choice. -Broken valves can be easily replaced with water, air and diesel gas lines.
