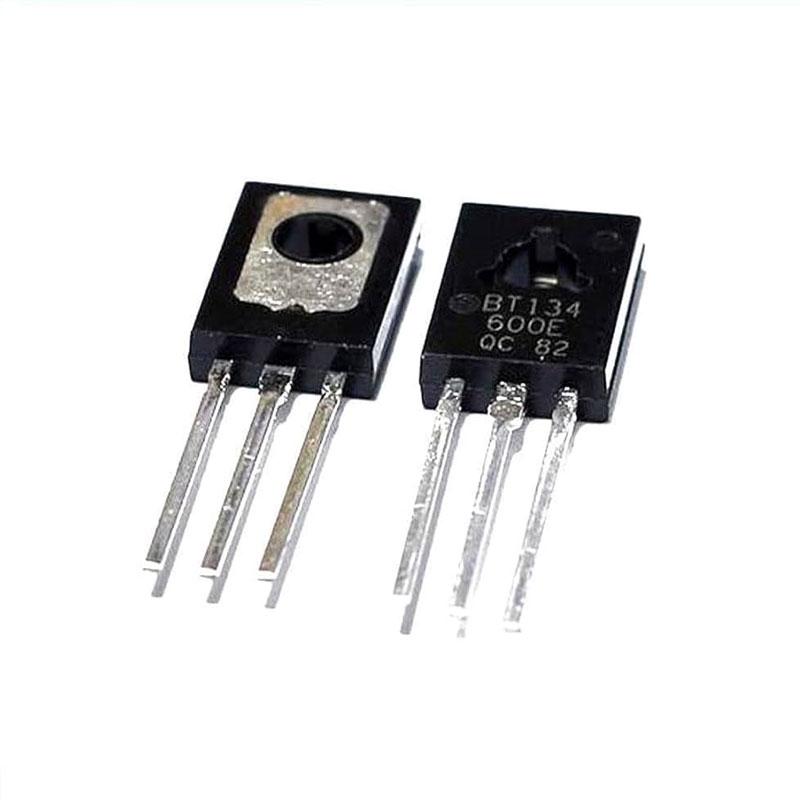

BT134 TRIAC BT134 TRIAC

1. General description Planar passivated sensitive gate four quadrant triac in a SOT82 plastic package intended for use in general purpose bidirectional switching and phase control applications. This “series E” sensitive gate triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. 2. Features and benefits • Compact package • Direct interfacing to logic level ICs • Direct interfacing to low power gate drive circuits • High blocking voltage capability • Low holding current for low current loads and lowest EMI at commutation • Planar passivated for voltage ruggedness and reliability • Sensitive gate • Triggering in all four quadrants 3. Applications • General purpose low power motor control • Home appliances • Industrial process control 4.Product Attributes Categories Discrete Semiconductor Products Thyristors – TRIACs Manufacturer WeEn Semiconductors Series – Packaging Tube Part Status Active Triac Type Logic – Sensitive Gate Voltage – Off State 600V Current – On State (It (RMS)) (Max) 4A Voltage – Gate Trigger (Vgt) (Max) 1.5V Current – Non Rep. Surge 50, 60Hz (Itsm) 25A, 27A Current – Gate Trigger (Igt) (Max) 10mA Current – Hold (Ih) (Max) 15mA Configuration Single Operating Temperature 125°C (TJ) Mounting Type Through Hole Package / Case SOT-82 Supplier Device Package SOT-82-3 Base Part Number BT134
