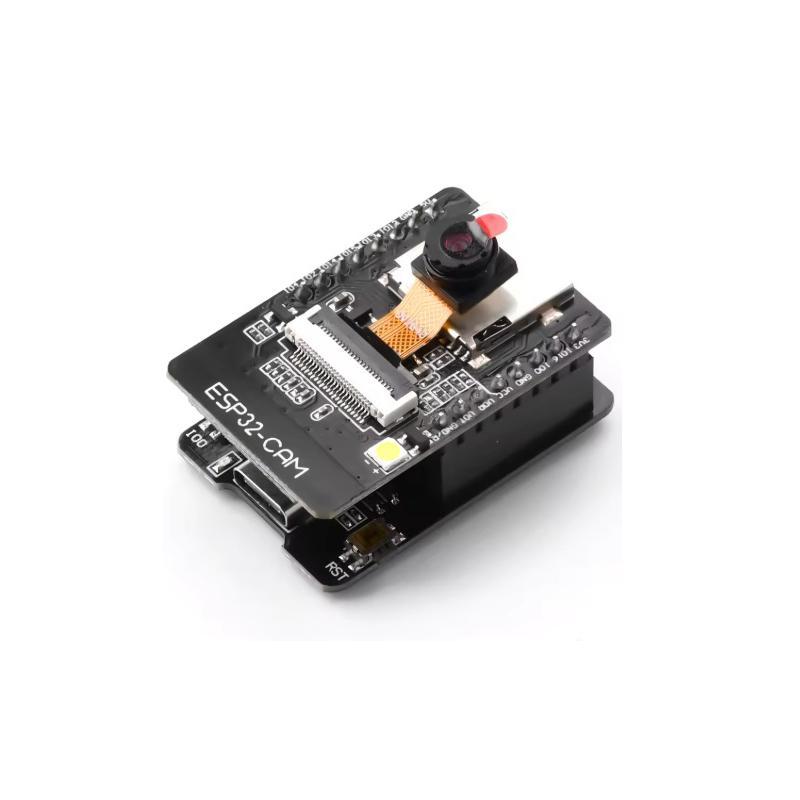

ESP32 Cam WiFi Bluetooth Development Board with OV2640 Camera Module

Features: 1.This module is a small-sized camera module that can work independently as the smallest system. 2.A brand new WiFi+Bluetooth dual-mode development board designed based on ESP32, using onboard PCB antennas, equipped with two high-performance 32-bit LX6CPUs, using a 7-stage pipeline architecture, with a main frequency adjustment range of 80MHz to 240Mhz. 3.ESP32-CAM is an 802.11b/g/n Wi Fi+BT/BLE SoC module with ultra-low power consumption and deep sleep current as low as 6mA, making it suitable for IoT applications with high power requirements.. 4.Easy to use, ESP32-CAM is a micro module with camera function, equipped with an OV2640 camera, GPIO for connecting peripherals, and a micro-SD card for storing captured images. It can be used directly by plugging it into the backplane. 5.HK-ESP32-CAM-MBEAX adopts Type-C interface, which is convenient and reliable in connection, and is suitable for various IoT hardware terminal applications. 6.ESP32-CAM can be widely used in various IoT applications, suitable for home intelligent devices, industrial wireless control, wireless monitoring, QR wireless recognition, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications. Parameters: Working voltage: 4.75-5.25V, recommended 5V SPIFlash: default 32mbit RAM: Internal 520KB+External 8MB PSRAM Wi Fi: 802.11b/G/n/e/i Bluetooth: Bluetooth 4.2BR/EDR and BLE standards Supports interfaces (2Mbps): UART, SPI, I2C, PWM TF card support: up to 4G IO ports: 9 Serial port speed: default 115200bps Spectrum range: 2400~2483.5 MHz Antenna shape: integrated PCB, 2dBi gain Image output formats: JPEG (OV2640 only), BMP, GRAYSCALE Transmission power: 802.11b: 17 ± 2dBm (@ 11mbps) 802.11g: 14 ± 2dBm (@ 54mbps) 802.11n: 13 ± 2dBm (@ MCS7) Receiving sensitivity: CCK, 1mbps: -90dBm CCK, 11mbps: -85dBm 6Mbps (1/2BPSK): -88dBm 54Mbps (3/464 QAM): -70dBm MCS7 (65Mbps, 72.2 Mbps): -67dBm Power consumption: Turn off flash: 180mA @ 5V Turn on the flash and set the brightness to a maximum of 310mA @ 5V. Deep sleep: The minimum power consumption can reach 6mA@5V . Modern sleep: minimum achievable 20mA@5V . Light sleep: minimum achievable 6.7mA@5V . Security: VPA/VPA2/VPA2 Enterprise/VPS Working temperature: -20 ℃~70 ℃ Storage environment: -40 ℃~125 ℃,<90% RH Characteristics: Adopting low-power dual core 32-bit CPU, it can be used as an application processor Up to 240MHz main frequency and up to 600 DMIPS computing power Built in 520 KB SRAM, external 8MB PSRAM Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC Supports OV2640 and OV7670 cameras with built-in flash Support for image WiFi upload Support for TF cards Supports multiple sleep modes. Embedded Lwip and FreeRTOS Support STA/AP/STA+AP working mode Support for Smart Config/AirKiss one click network distribution Support for secondary development Application: Smart home device image transmission Wireless monitoring Smart Agriculture Wireless QR code recognition Wire
