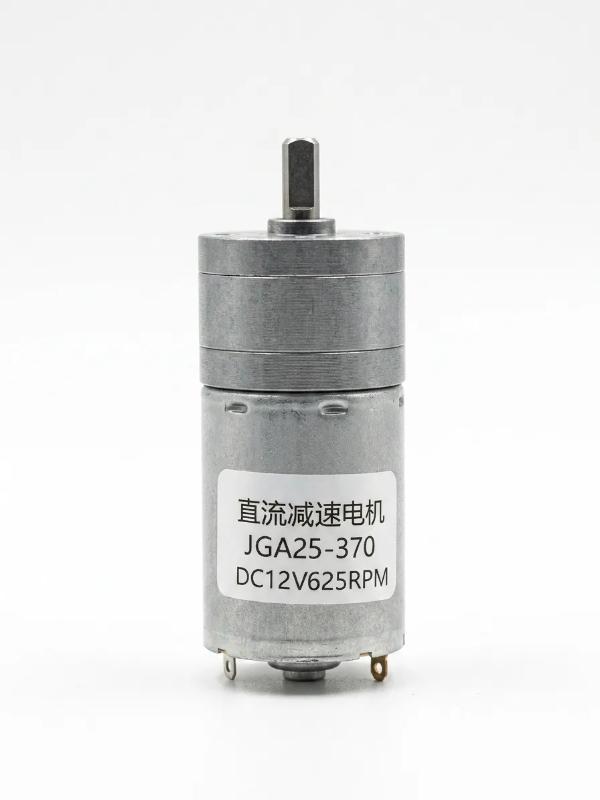

DC Geared Motor (JGA25-370 / DC12V 625RPM)

Motor Model: JGA25-370 Type: DC Geared Motor (Spur Gearbox) Rated Voltage: 12V DC Operating Voltage Range: 6V – 12V DC No-Load Speed: ~625 RPM @ 12V No-Load Current: ≤ 60 mA – 100 mA Rated Current: ~0.3 A – 0.5 A Stall Current: ~1.2 A – 1.8 A Mechanical Specifications & Dimensions Gearbox Diameter: 25 mm Motor Body Diameter: 24.4 mm Overall Length (excluding shaft): ~50 mm to 54 mm (varies slightly by gearbox reduction ratio) Shaft Type: D-shape (Single flat) Shaft Diameter: 4 mm Shaft Length: ~10 mm to 12 mm Mounting Holes: M3 screws (2x mounting threads on the front face, standard 17 mm distance) Performance Characteristics Rated Torque: ~0.25 kg·cm – 0.4 kg·cm Stall Torque: ~1.2 kg·cm – 1.8 kg·cm Direction: Reversible (Swap positive and negative terminal connections to reverse rotation) Common Applications • Small robotics / wheeled platforms • Smart door locks / actuators • Automated vending mechanisms • DIY electronic and mechatronic projects ```
