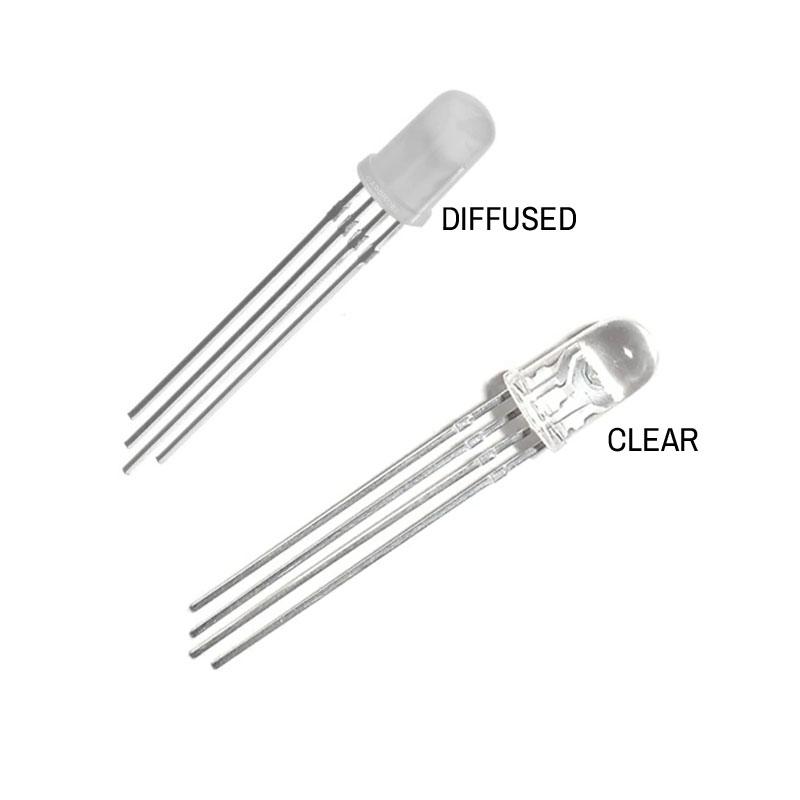

5MM RGB COMMON ANODE/CATHODE (DIFFUSED- TRANSPARENT)

Features Color: Tri-Color (Red/Green/Blue) Common Cathode 5mm Clear Round Lens Forward Voltage: Red: DC 2.0 - 2.2V; Blue & Green: DC 3.0 - 3.2V (IF=20mA) 0.06 Watts DIP RGB LED Luminance Brighter Up To +20% Viewing Angle: 30° RGB LEDs can be categorized into common anode and common cathode ones. In a common cathode RGB LED, all three LEDs share a negative connection (cathode). In a common anode RGB LED, the three LEDs share a positive connection (anode). An RGB LED has 4 pins: the longest one is GND; the others are Red, Green and Blue. Place the RGB LEDs as shown, so that the longest lead is second from the left. Then the pin numbers of the RGB LEDs should be Red, GND, Green and Blue. RGB LEDs emit light in various colors. An RGB LED packages three LEDs of red, green, and blue into a transparent or semitransparent plastic shell. It can display various colors by changing the input voltage of the three pins and superimpose them, which, according to statistics, can create 16,777,216 different colors.
