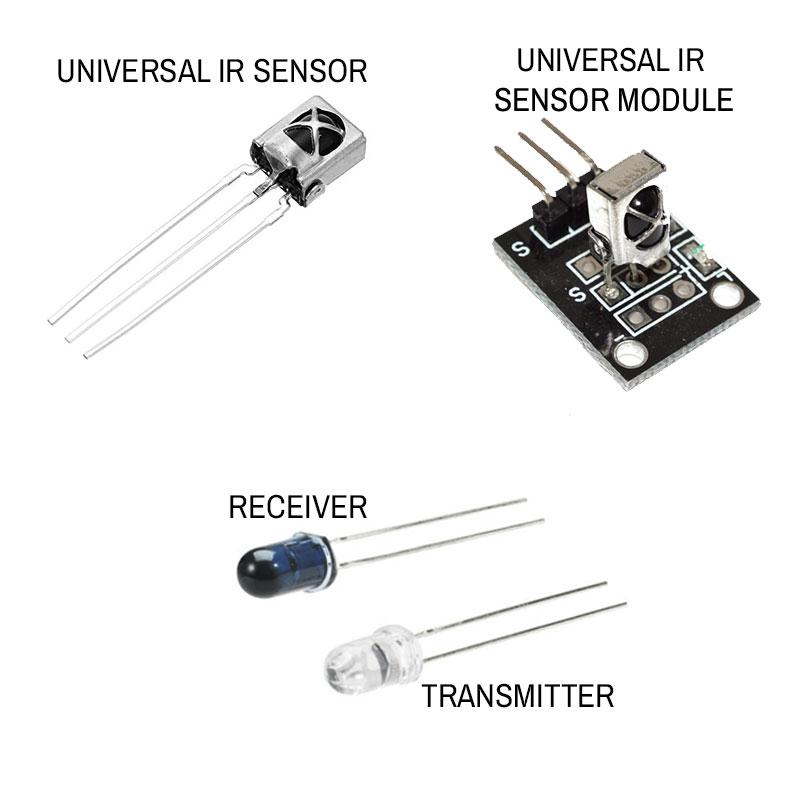

IR INFRARED LED TRANSMITTER AND RECEIVER (940NM) UNIVERSAL INFRARED RECEIVER MODULE HS0038

Infrared Receiver Tube: Diameter : 5MM wavelength:940nm Forward Voltage: 1.2-1.3V Infrared Transmitting Tube: Size: 5mm Lens Color : Water Clear Forward Voltage (V) : 1.5~1.6 Forward Current (mA): 60mA Continuous, 120mA peak for 10% pulse width Wavelength (nm): 940 View Angle: 15-30 degree IR Remote Control Receiver Ideal for projects with ARDUINO, PIC, AVR, Raspberry Voltage Vcc: 2.7V – 5.5V Icc current: 1.5mA Digital output OUT: Low level voltage: 0.4V High level voltage: 4.5V Reception distance: approx. 20m Reception angle: ± 90 Degrees Frequency: 38KHz VS1838 PIN photodiode with preamplifier IC 850 nm nominal wavelength detection Wide 45° detection angle 38KHz carrier frequency Digital output when IR detected 3.3 and 5V compatible
