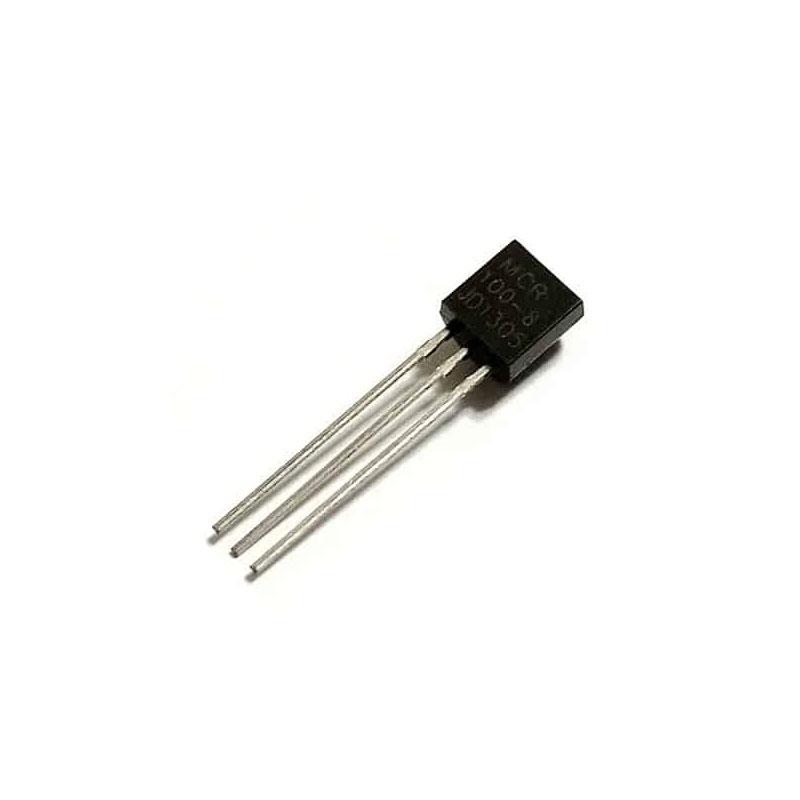

MCR100-8: 0.5A SCR TO-92

This Silicon Controlled Rectifier is packaged in TO-92 package, which has an average on-state current of 0.5 A. Available as High Reliability device per MIL-PRF-19500 indicate –HR suffix after the part number. Contact for -HR flow. Add “PBF” suffix for Pb-free lead finish. Applications: Silicon Controlled Rectifiers are triggered solid state switches used in control applications in motors, lighting and heating, power supplies and many other kinds of equipment. PNPN devices designed for high volume, line-powered consumer applications such as relay and lamp drivers, small motor controls, gate drivers for larger thyristors, and sensing and detection circuits. Supplied in an inexpensive plastic TO-226AA package which is readily adaptable for use in automatic insertion equipment. • Sensitive Gate Trigger Current — 200 µA Maximum • Low Reverse and Forward Blocking Current — 100 µA Maximum, TC = 125°C • Low Holding Current — 5 mA Maximum • Glass-Passivated Surface for Reliability and Uniformit
