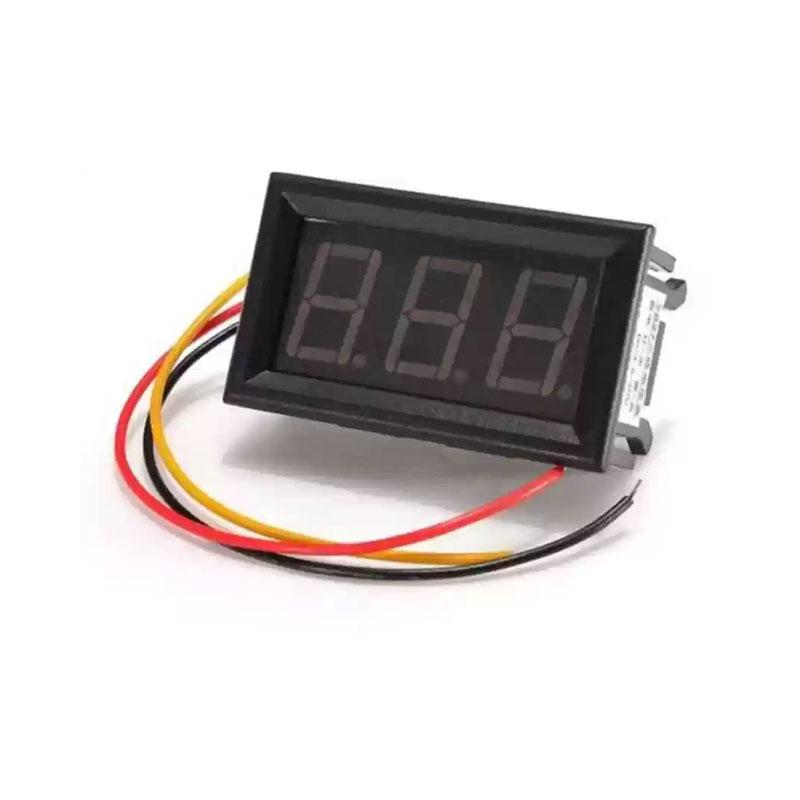

THREE WIRE DC VOLTMETER HEAD 0-30V
REVERSE CONNECTION PROTECTION
Good stability and high measurement accuracy Appearance in a standard size, easy to install Power supply polarity protection circuit
Operating voltage: 4.5 ~ 30V Operating Current: <60mA Display: 0.56 “LED, red colors.
Mounting holes: 45.5 x 26.5 mm.
Measurement rate: 500mS.
Measurement accuracy: 1%.
Maximum operating conditions: Minimum operating voltage: 4.5 V Maximum operating voltage: 30 V.
Operating temperature: -10 to 65 C.
Operating Humidity: 10 ~ 80% (no condensation).
Working pressure: 80 ~ 106kPa .
Sun exposure: no direct exposure .
Color: Black.
Item size: 48 x 29 x 21 mm.
Net weight: 17g.
Package:1 x Digital Voltmeter
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
