REED SWITCH (2X14MM)

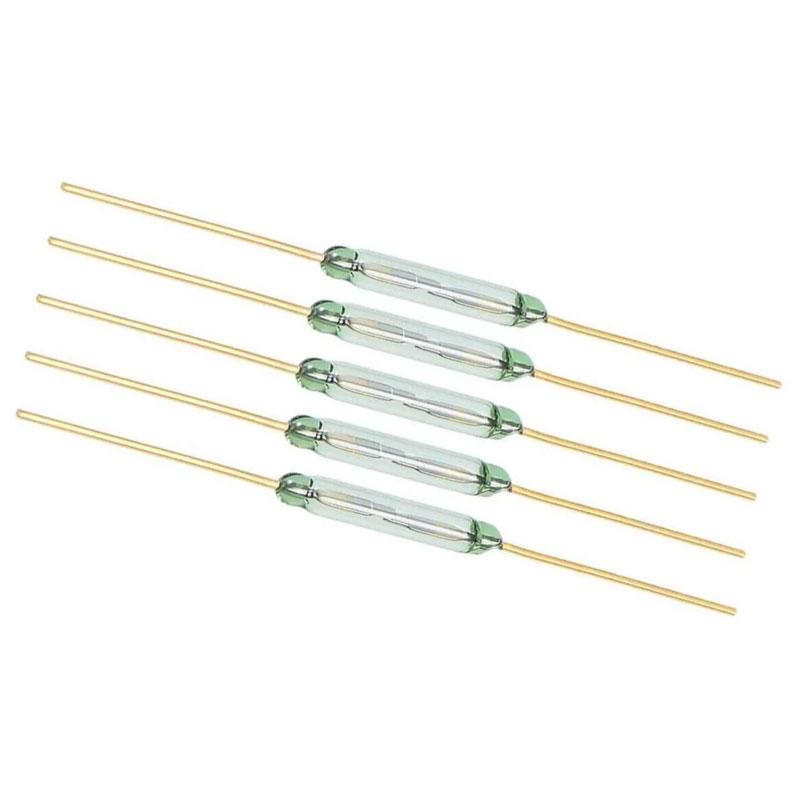

This glass reed switch is normally open type with 14*2mm size.It has compact size and light weight which can be installed in extremely limited space,very suitable for miniaturization of devices.It doesn’t use the sliding element, thus,metal fatigue phenomenon will not appear, ensuring virtually no limit mechanical life.It is suitable for various items ,such as PBX, photocopiers, washing machines, refrigerators, door, window magnetic, electromagnetic relays,etc. Specifications: Total Length 44mm Glass Length 14mm Glass Diameter 2mm Contact Form A Maximum power 10W Maximum switching voltage 100VDC High voltage 250VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number / Resistance 870/5000Ω Features: 14*2mm size Normally open type Compact size ,light weight can be installed in extremely limited space, very suitable for miniaturization of devices. Do not use the sliding element, not having metal fatigue phenomenon, ensuring virtually no limit mechanical life. Fit for many items( PBX, photocopiers, washing machines, refrigerators, door, window magnetic, electromagnetic relays, electronic weighing, level gauges, gas meter)
