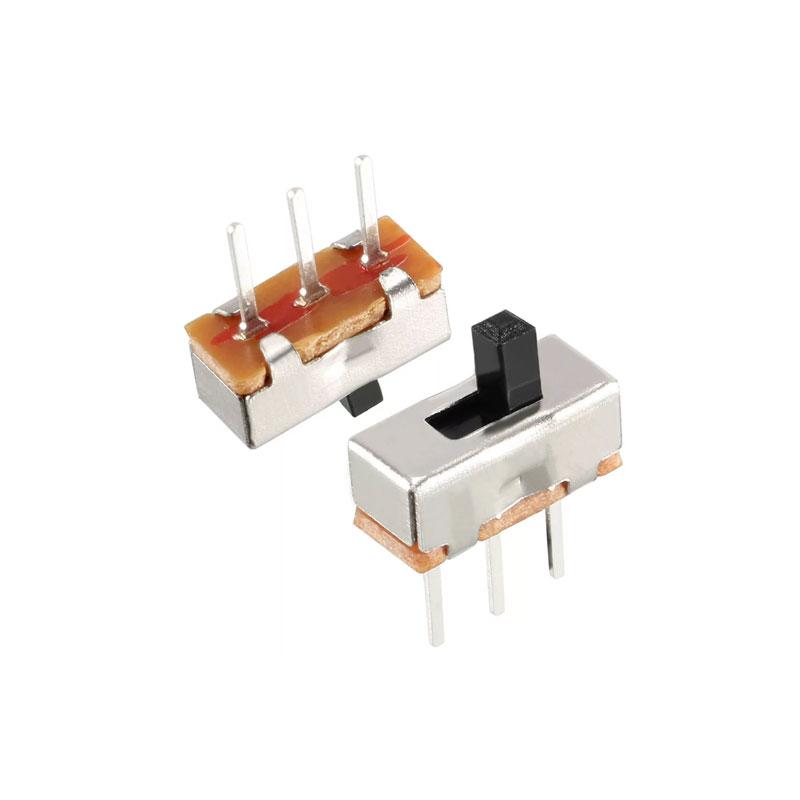

SPDT
Model:SS-12D00G3
Type:1 Pole 2 Throw
Terminal Quantity:3 Pcs
Working Power:0.5A 50V DC
Contact Resistance:30mΩ Max
Insulation Resistance:100mΩ Min at 500V DC
Withstand Voltage:AC 500V for 1 min
Terminal Length:3mm/ 0.12″
Pin Pitch:2.54mm / 1″
Main Body Size(not include Pins & Knob):8 x 4 x 3.8mm/ 0.31″ x 0.16″ x 0.15″(L*W*H)
Switch Total Size:8 x 4 x 10mm/ 0.31″ x 0.16″ x 0.39″(L*W*H)
Knob Size:1.5 x 1.5 x 3mm/ 0.06″ x 0.06″ x 0.12″(L*W*H)
Material(External):Plastic, Metal
Main Color:Silver Tone, Black
