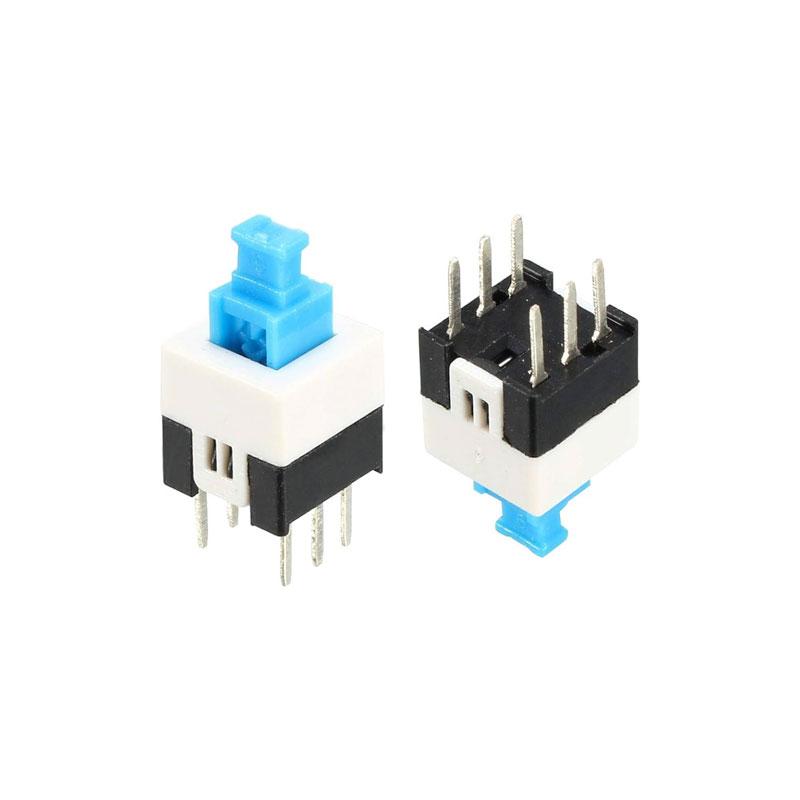

Blue Cap Self-locking Type Square Button Switch 8X8mm 6 Pin
Contact Rating 500mA @ 12V DC
Contact Resistance ≤30mΩ max
Dielectric strength 250V AC for 1 minute
Dimensions 6 x 6 x 3.5mm (base)
1.5mm (protruding button)
Insulation Resistance ≥100MΩ min @ 500V DC
Operating Temperature -30°C to +70°C
Pitch 6.5 x 4.5mm
Travel 0.25mm
